7 Current Sensors For Power Consumption Monitoring

Monitoring energy consumption is an excellent way to bridge the gap between abstract physics concepts and tangible, real-world data. By turning invisible electricity into measurable numbers, students develop a deeper appreciation for environmental sustainability and engineering efficiency. These seven sensors provide varying levels of complexity, allowing for a structured progression from hobbyist experimentation to advanced data analysis.

SCT-013-000: The Safest Entry Into AC Monitoring

When a child begins exploring home automation or energy auditing, safety is the primary concern. The SCT-013-000 is a non-invasive current transformer, meaning it clips around a wire rather than requiring a direct electrical connection.

This design makes it the perfect entry point for students aged 12 and up who are just starting to grasp AC circuits. Because the sensor does not touch live wires, the risk of accidental shock is virtually eliminated during the installation process.

ACS712 Module: Affordable Accuracy for Beginners

Many younger students start their journey with battery-powered projects like solar-charged robots or simple DC motor controllers. The ACS712 is an incredibly budget-friendly sensor that measures current by sensing the magnetic field generated by the flow of electricity.

It is best suited for low-voltage hobbyist boards where precision is less critical than understanding the basic mechanics of power draw. Expect this module to be a staple in the kit of a student who enjoys tinkering with breadboards and basic microcontrollers.

INA219 High-Side Sensor: Best for Precision Projects

As a student transitions from simple blinking lights to sophisticated sensor arrays, the need for data accuracy becomes paramount. The INA219 offers a significant step up by providing both current and voltage readings through a single, easy-to-use digital interface.

It is highly recommended for middle-schoolers working on projects that require logging battery life or calculating actual power usage over time. The high-side measurement capability allows for cleaner circuit designs and more professional results in student competitions.

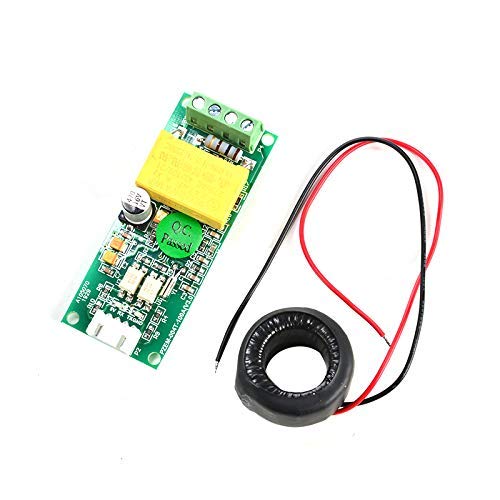

PZEM-004T Module: All-in-One Power Data Analysis

For the student interested in smart-home technology or monitoring household appliances, the PZEM-004T acts as a complete sub-metering system. It calculates voltage, current, power, and energy simultaneously, outputting the data via serial communication.

This sensor is ideal for an intermediate-level student capable of writing code to log data to a database or a visual dashboard. It represents a shift from simple component testing to full-system monitoring and data analysis.

Shelly EM Meter: Modern Tracking for Tech Savvy Teens

Sometimes, the best educational tool is one that functions similarly to professional commercial equipment. The Shelly EM is a consumer-grade device that provides industrial-level data tracking through a smartphone app, bypassing the need for complex custom circuitry.

This is the perfect choice for a teenager interested in sustainability initiatives who wants to monitor real-world energy consumption in the home. It shifts the focus from building the sensor to interpreting the data and making actionable changes based on the results.

Adafruit INA260: Plug-and-Play Power Monitoring Gear

When a student’s passion leads to rapid prototyping, spending hours troubleshooting wiring can dampen their enthusiasm. The Adafruit INA260 is an integrated, high-precision sensor that simplifies the process with a ready-to-use board.

Its design features internal shunt resistors, meaning no external components are needed to measure power flow. It serves as an excellent investment for a student whose primary interest is in the software and logic side of engineering rather than the hardware assembly.

SparkFun ACS723: Ideal for Small DC Electronics Tasks

Small-scale DC electronics projects, such as quadcopter builds or precision sensors, require a module that doesn’t add unnecessary bulk. The SparkFun ACS723 is compact and provides an analog output that is highly responsive to rapid changes in current.

It is particularly effective for students learning about signal filtering and the nuances of transient power spikes. This module offers a balanced middle ground between the cheaper, less precise entry-level modules and the more complex digital sensors.

Choosing Sensors Based on Your Child’s Project Scope

Selecting the right hardware depends entirely on where your child is in their technical development. Younger students benefit most from sensors that provide instant, visual feedback, while older, more experienced students should focus on sensors that offer programmable data logging capabilities.

• Age 8–11: Focus on non-invasive sensors like the SCT-013-000 to keep them safe while learning.
• Age 12–14: Look for digital interfaces like the INA219 that help build coding and data management skills.
• Project Focus: Consider whether the project is about measuring home utility usage (high-voltage AC) or fine-tuning a small robotic project (low-voltage DC).

Safety First: Handling High Voltage in Student Kits

Regardless of the sensor chosen, high-voltage AC circuits demand strict supervision and proper equipment. Always teach the student to disconnect power sources before making any connections or adjustments to a circuit.

When working with sensors like the PZEM-004T, ensure that all connections are enclosed in protective housing to prevent accidental contact. Treating electricity with respect is the most important lesson a young engineer can learn.

Moving From Basic Circuits to Advanced Data Logging

The progression from simply “seeing” a measurement to “logging” it marks a major milestone in a student’s technical journey. Encourage your child to not only build the circuit but to graph the data over hours or days.

This transition from hardware enthusiast to data analyst helps them understand the true impact of energy consumption. It turns a temporary science project into a lasting understanding of how to optimize the world around them.

Supporting a child’s interest in electronics is a journey that rewards curiosity and rewards the persistence required to master complex systems. By starting with the right tools, you provide the foundation for skills that will serve them long after they have moved on from their first home project.
